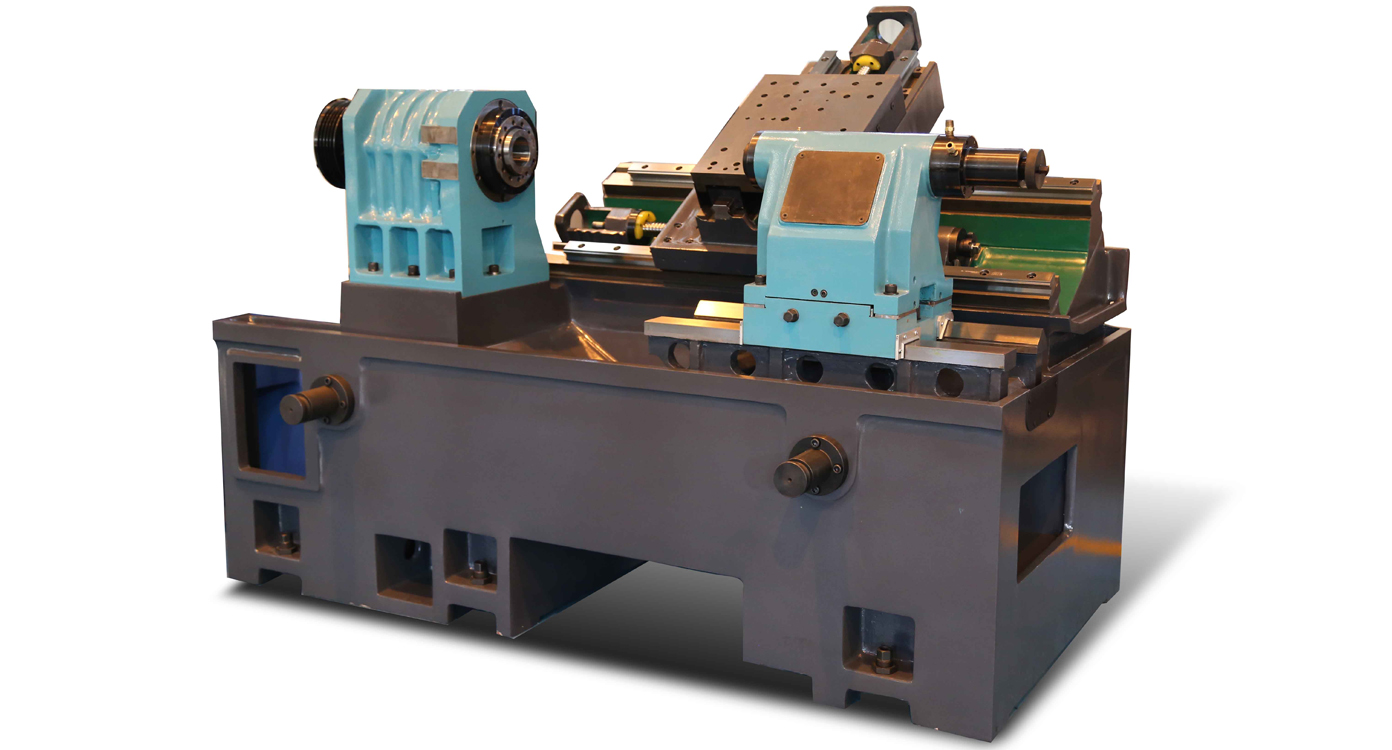

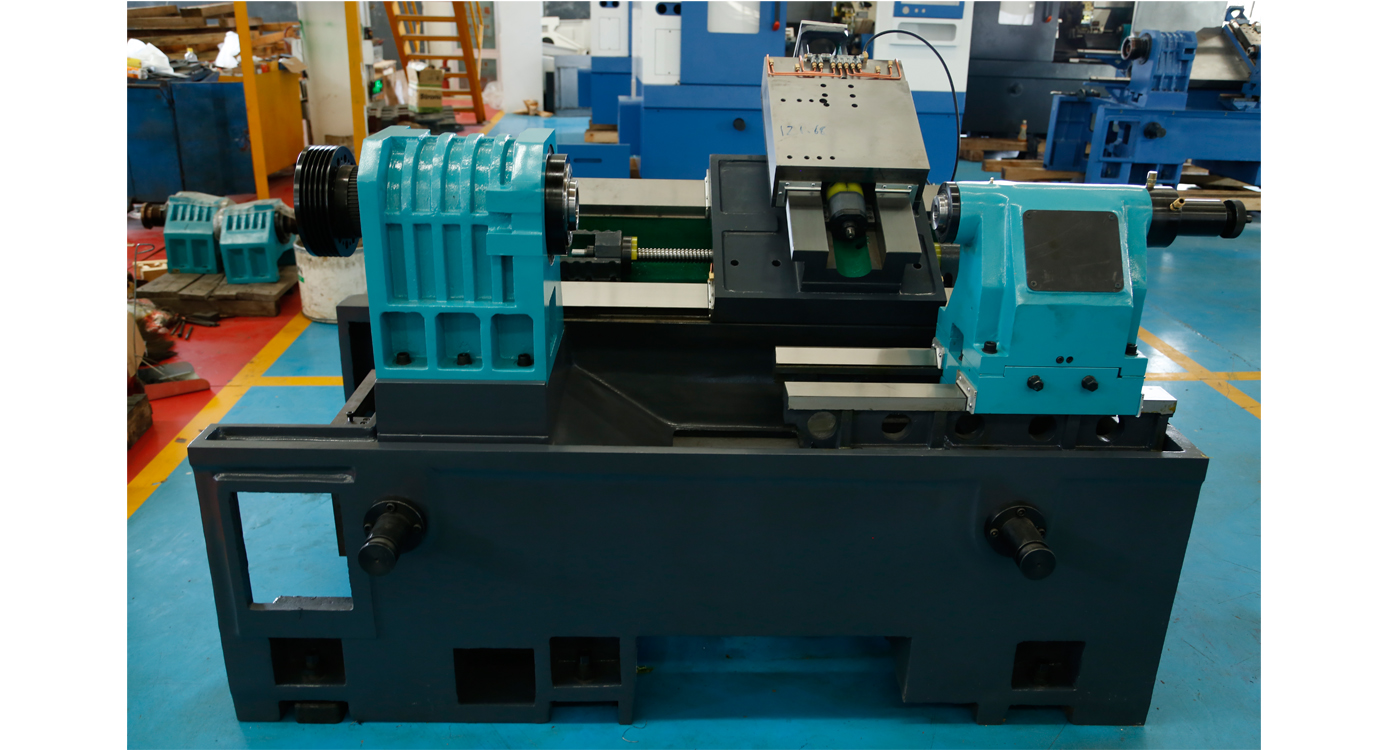

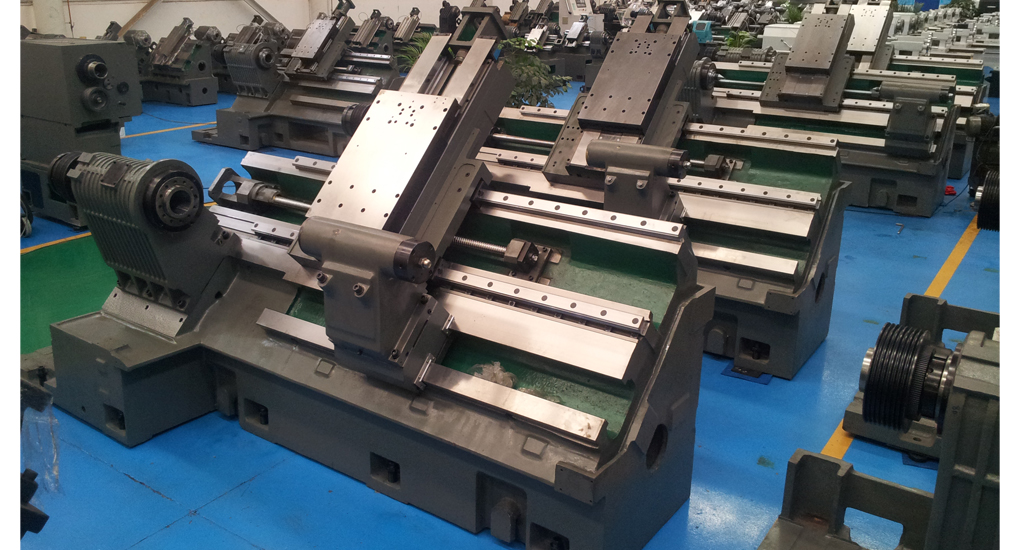

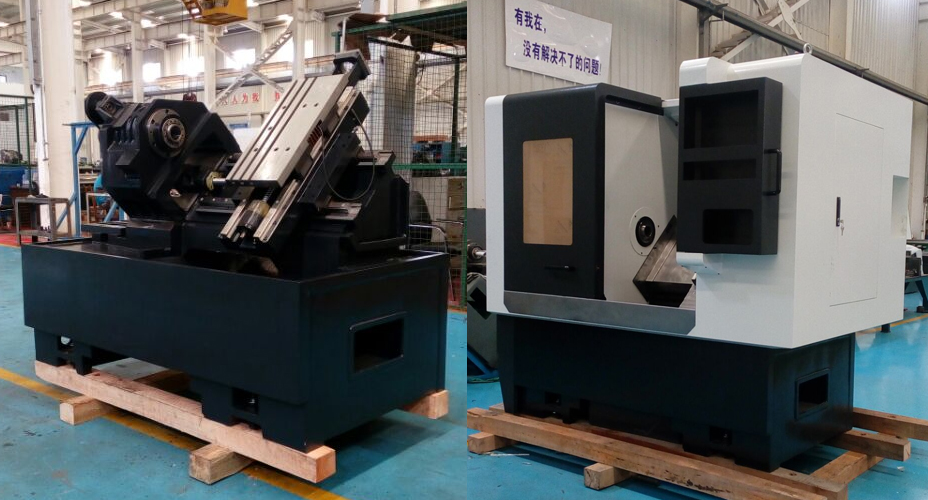

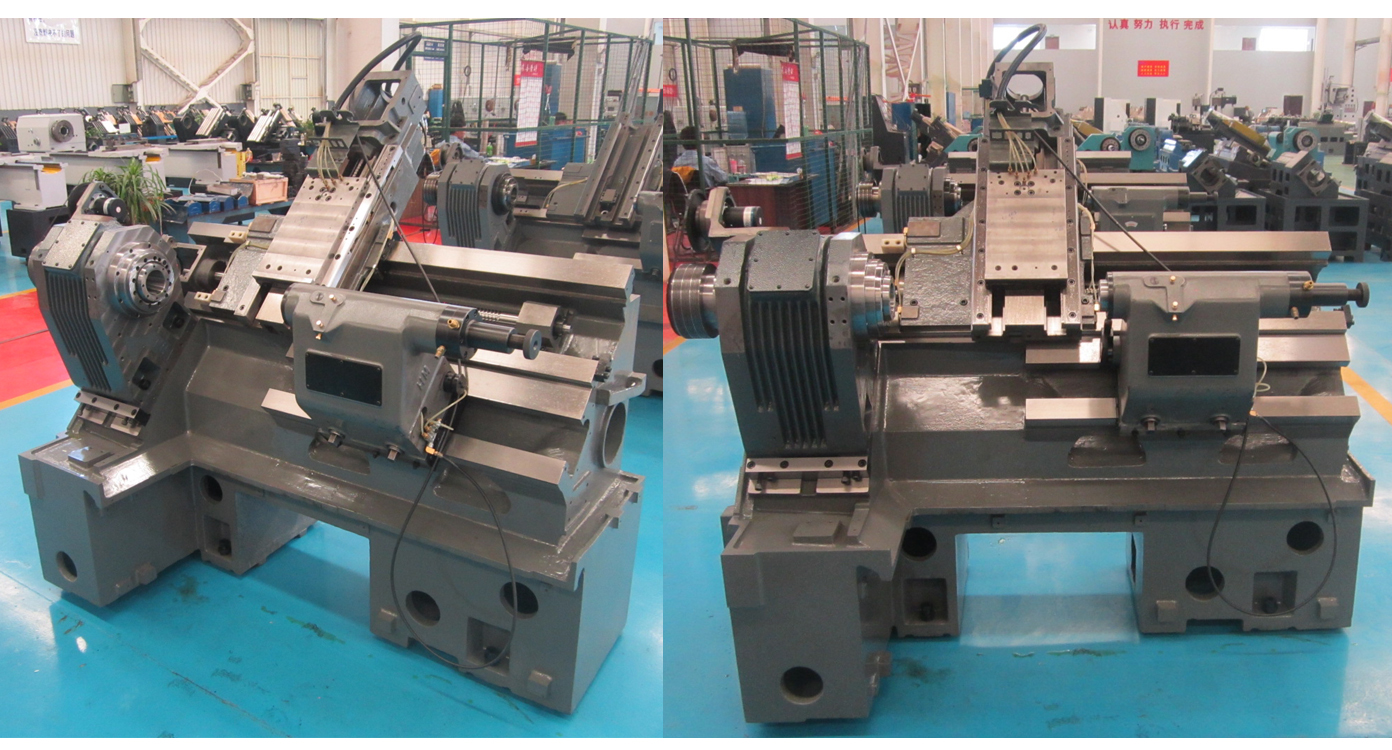

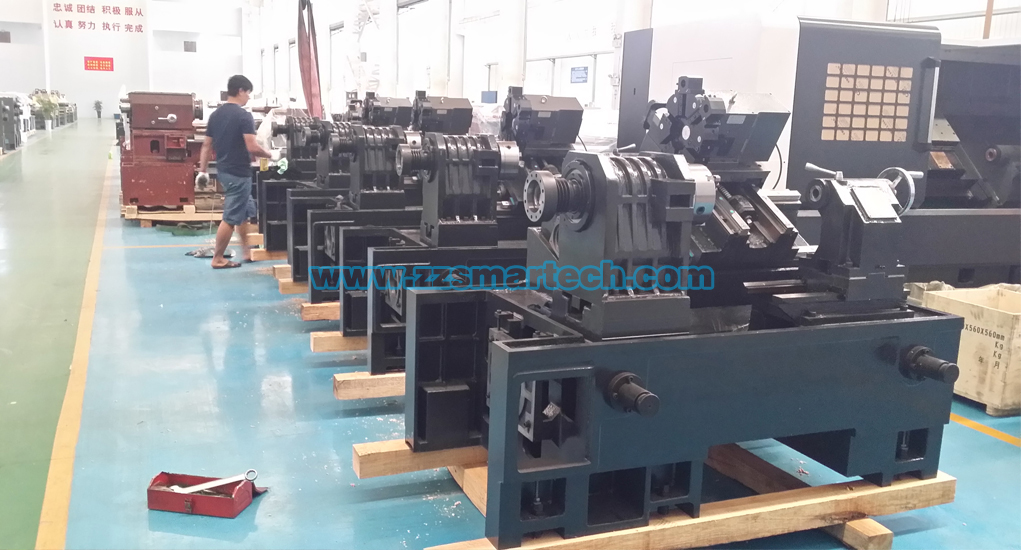

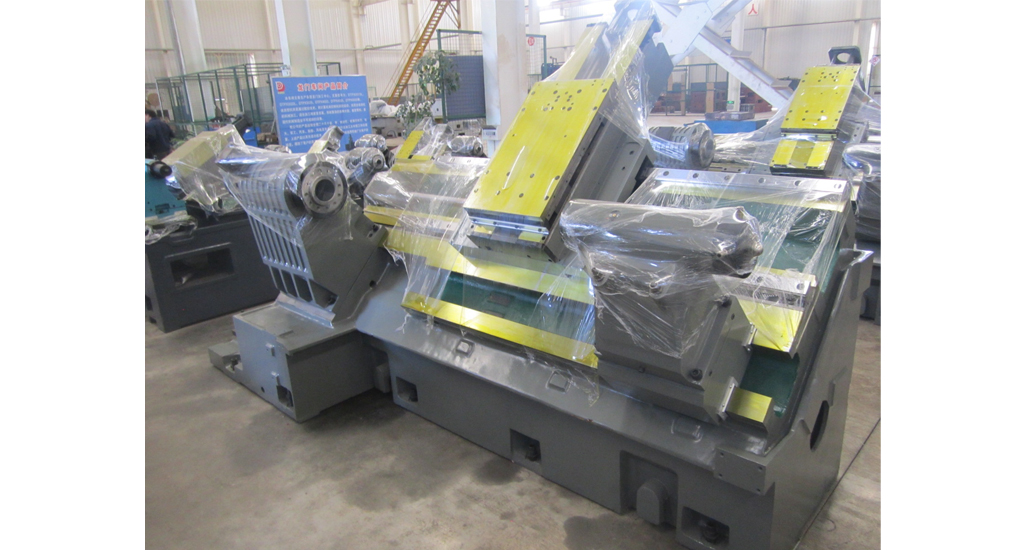

Slant-bed Lathe Frame
5-inch (127 mm)
6-inch (152 mm)
  • TCK32L

    Max. Turning Capacity
    Φ320 mm Diameter
    200 mm Length

  • TCK36L

    Swing over Bed: Φ360
    Turning Diameter: Φ360
    Turning Length: 290

  • TCK42L

    Swing over Bed: Φ420
    Turning Diameter: Φ420
    Turning Length: 330

  • TCK36A

    Swing Over Bed: Φ460
    Turning Diameter: Φ400
    Turning Length: 350

8-inch (203 mm)
  • TCK-PL20L

    Swing over Bed: Φ450
    Turning Diameter: Φ300
    Turning Length: 520

  • TCK45H

    Max. Turning Capacity
    Turning Diameter: Φ450
    Turning Length: 500

  • TCK45L

    Max. Turning Capacity
    Turning Diameter: Φ450
    Turning Length: 500

10-inch (254 mm)
  • TCK50A

    Max. Turning Capacity
    Turning Diameter: Φ500
    Turning Length: 490

  • TCK4550L

    Swing over Bed: Φ500
    Turning Diameter: 480
    Turning Length: 580

  • TCK4558L

    Swing over Bed: Φ580
    Turning Diameter: 580
    Turning Length: 1000

  • TCK4563L

    Swing over Bed: Φ650
    Turning Diameter: 630
    Turning Length: 1000
