HMC Frame

Accuracy standard implemented: ISO10791-2:2001 (JB/T8771.1998).

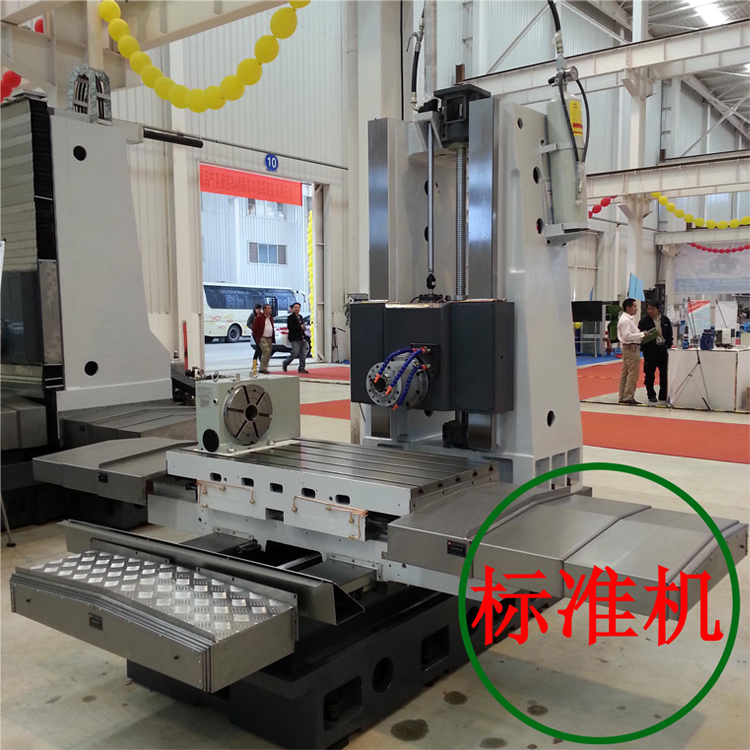

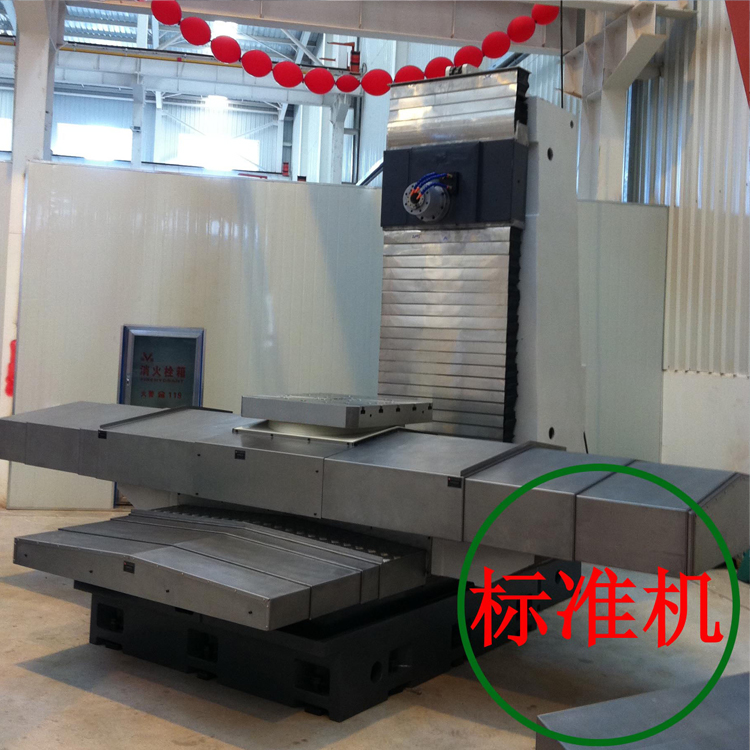

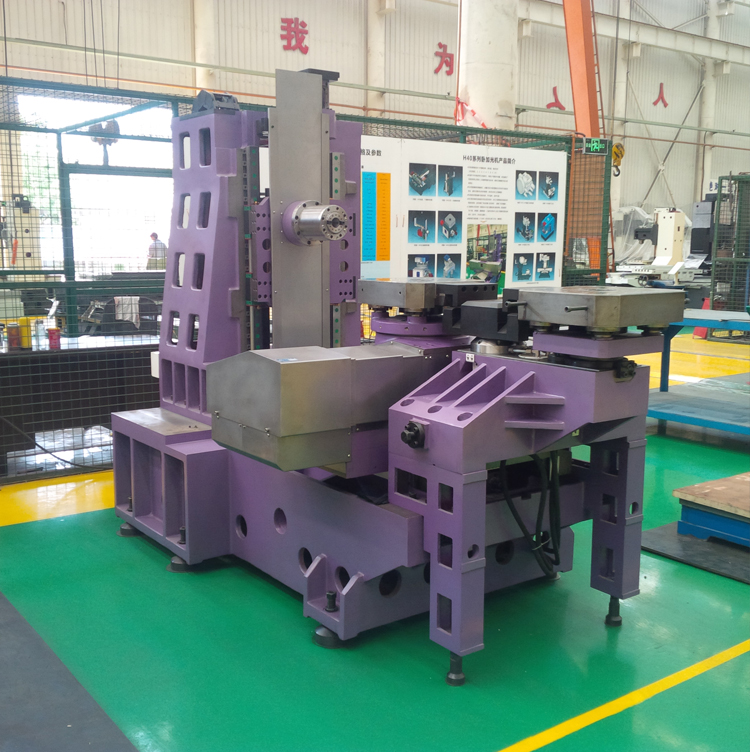

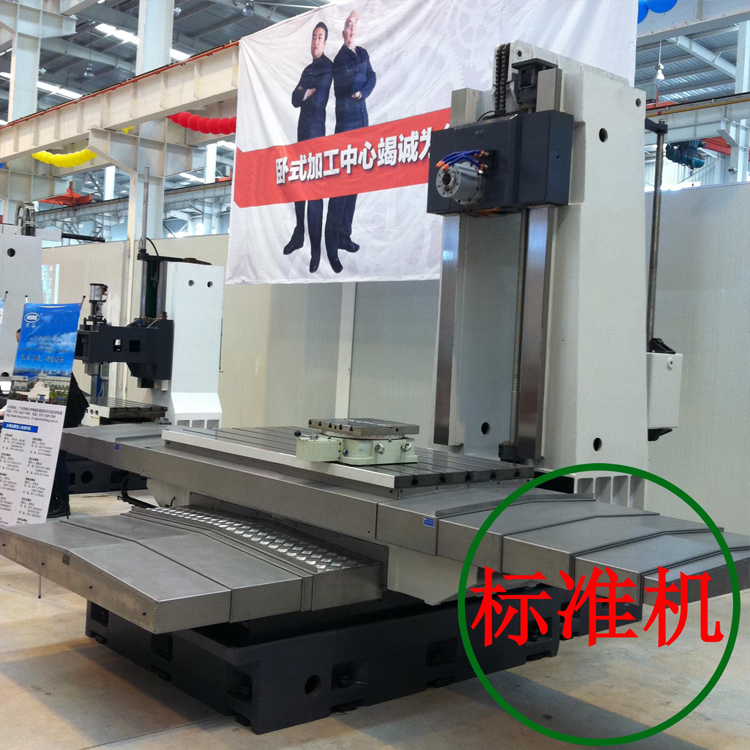

Smartech supplys both frame and complete machine, below is the introduction of frame.
Standard Components:
1.    High-quality castings processed with resin sand and wooden molds ;
2.    Hiwin, PMI, Rexroth (brand of) linear guideways;
3.    Hiwin, PMI, Rexroth, BSG or HPS (brand of) ball screws,
4.    NSK or FAG bearings for supporting ball screws ;
5.    Royal or POSA spindle, 8000 rpm, blet-type drive ;
6.    Beijyu or Haocheng brand of tool unclamping system ;
7.    R&W couplings from Germany ;
8.    Keyarrow (Taiwan) brand of telescopic covers, stainless steel cover on all axes ;
9.    Hydraulic or pneumatic balancing system ;
10.  Centralized lubrication system of Byjur or HERG brand ;
11.  Rotary worktables of Chinese brand.
* Same price for all the brands mentioned.
Optional Components:
1     8000 rpm Spindle ;
2     ZF or BF reducer ;
3     Coolant pump of Taiwan brand Walrus ;;
4     Coolant through spindle ;
5     Outside guarding, standard or specially designed for client ;
6     Chip conveyor: helix type, chain type ;
7     CNC pre-installed for client, complete machine ready to use ;
8     ATC: drum type, arm type or chain type.
